As part of the project, we designed and constructed a compact storage hall with dimensions of 6 × 12 × 3.6 m.

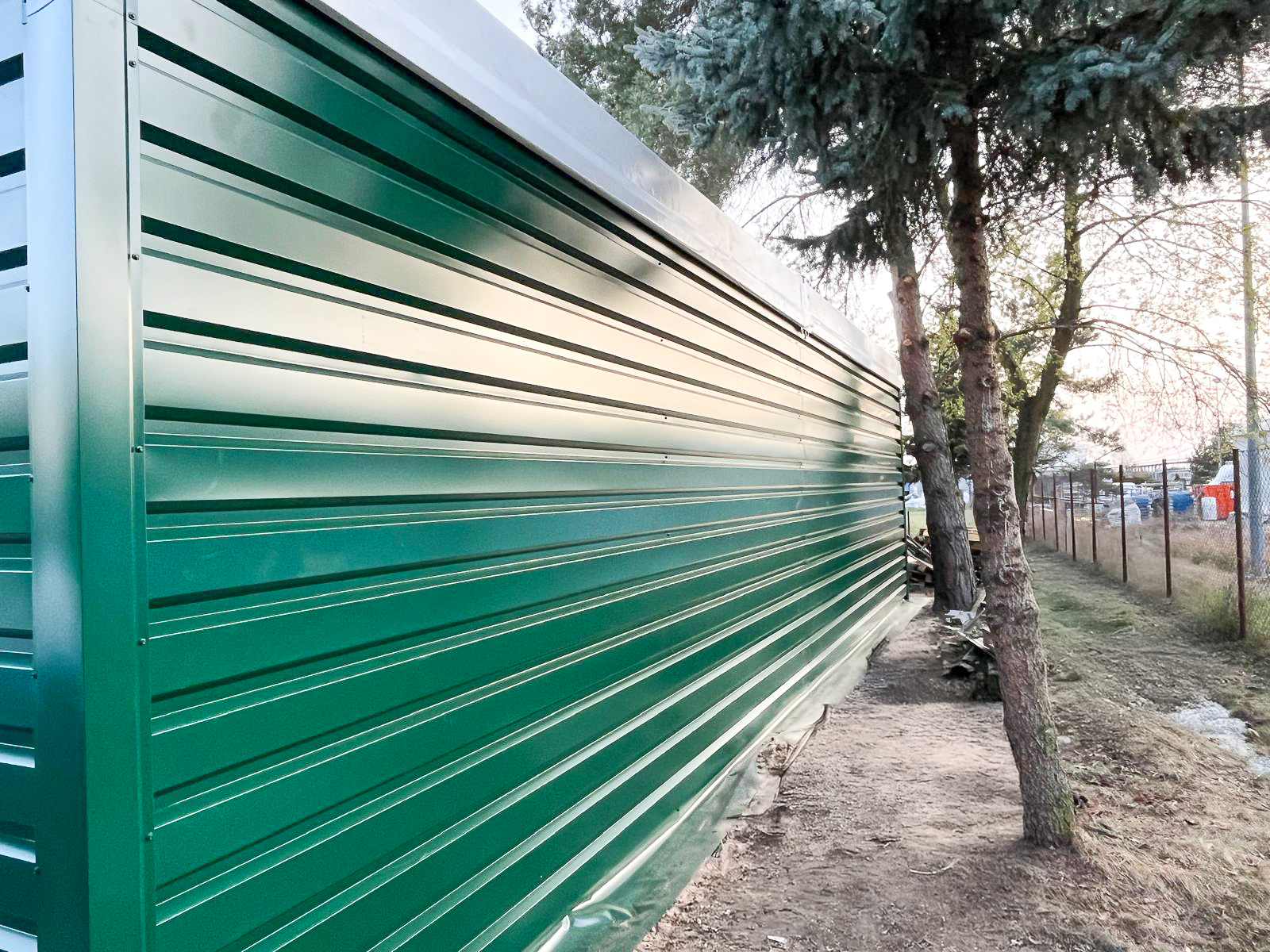

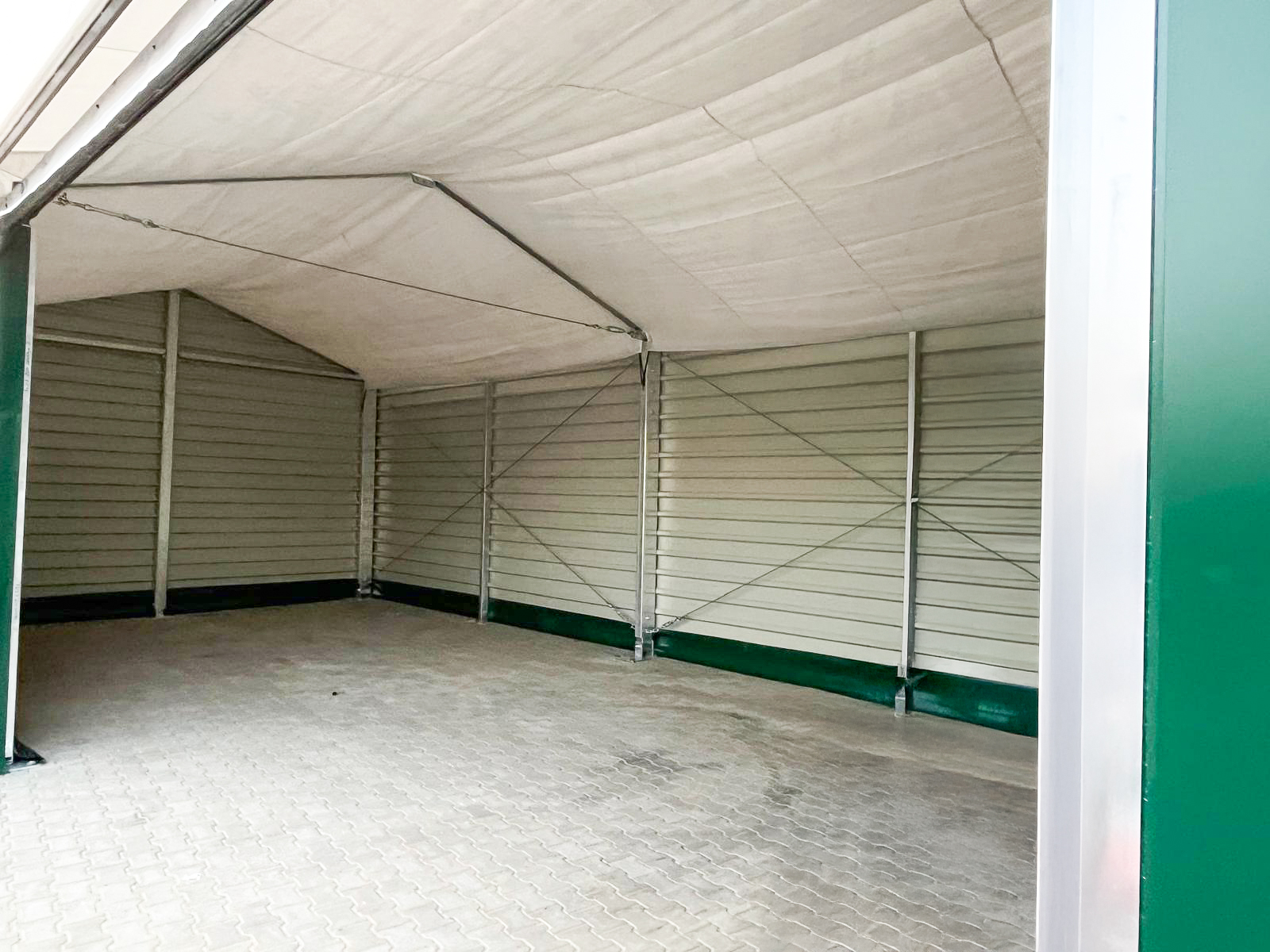

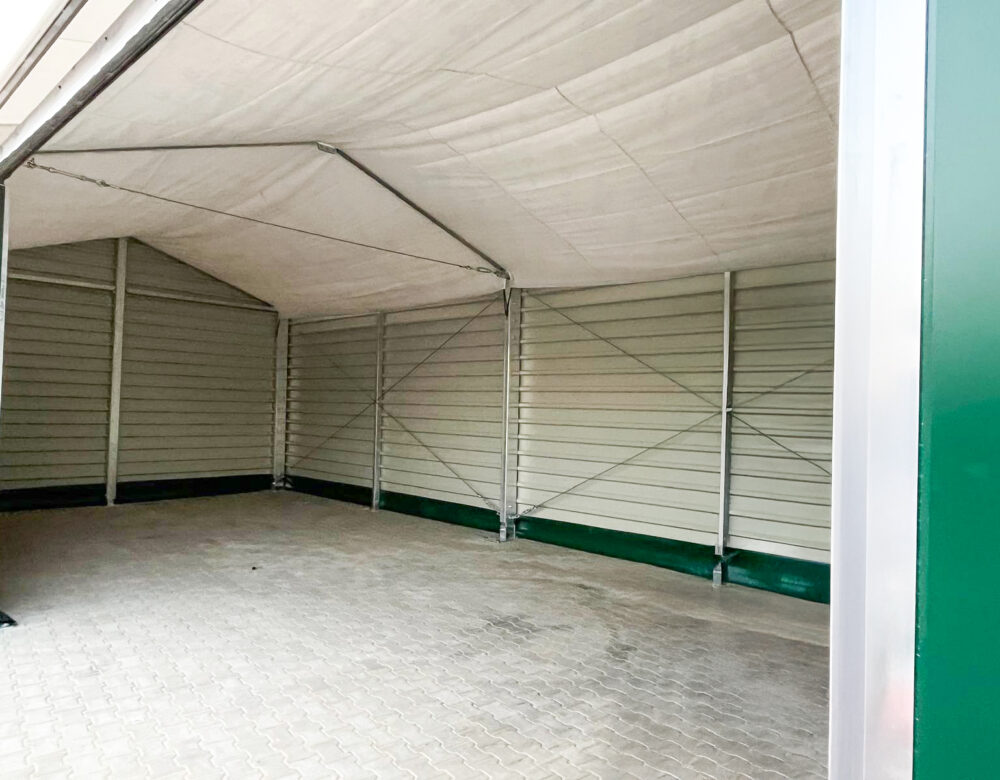

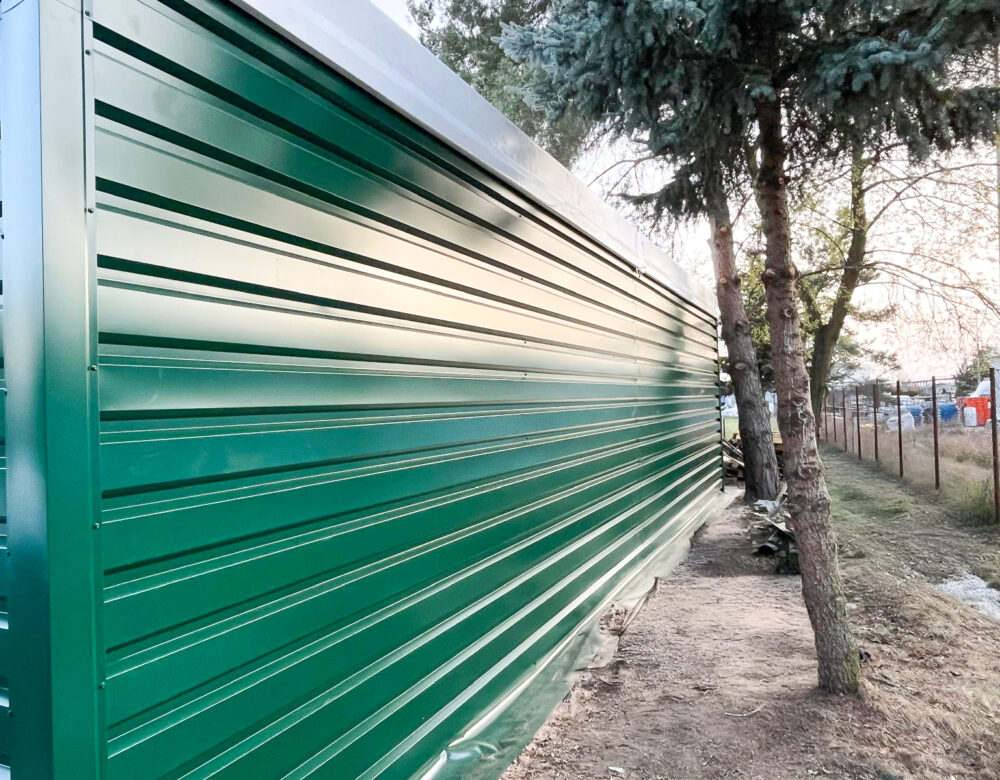

The structure was based on a segment every 6 metres and a steel profile, with sloping beams made of steel. The sheathing of the walls and gable triangles was made of T-35 trapezoidal sheet metal in RAL 6005, giving the building a consistent industrial look. The roof was made of a PVC membrane, thread-tensioned to ensure the durability and airtightness of the covering. An STD-type anti-condensation soffit was used, effectively minimising the risk of condensation inside the hall.

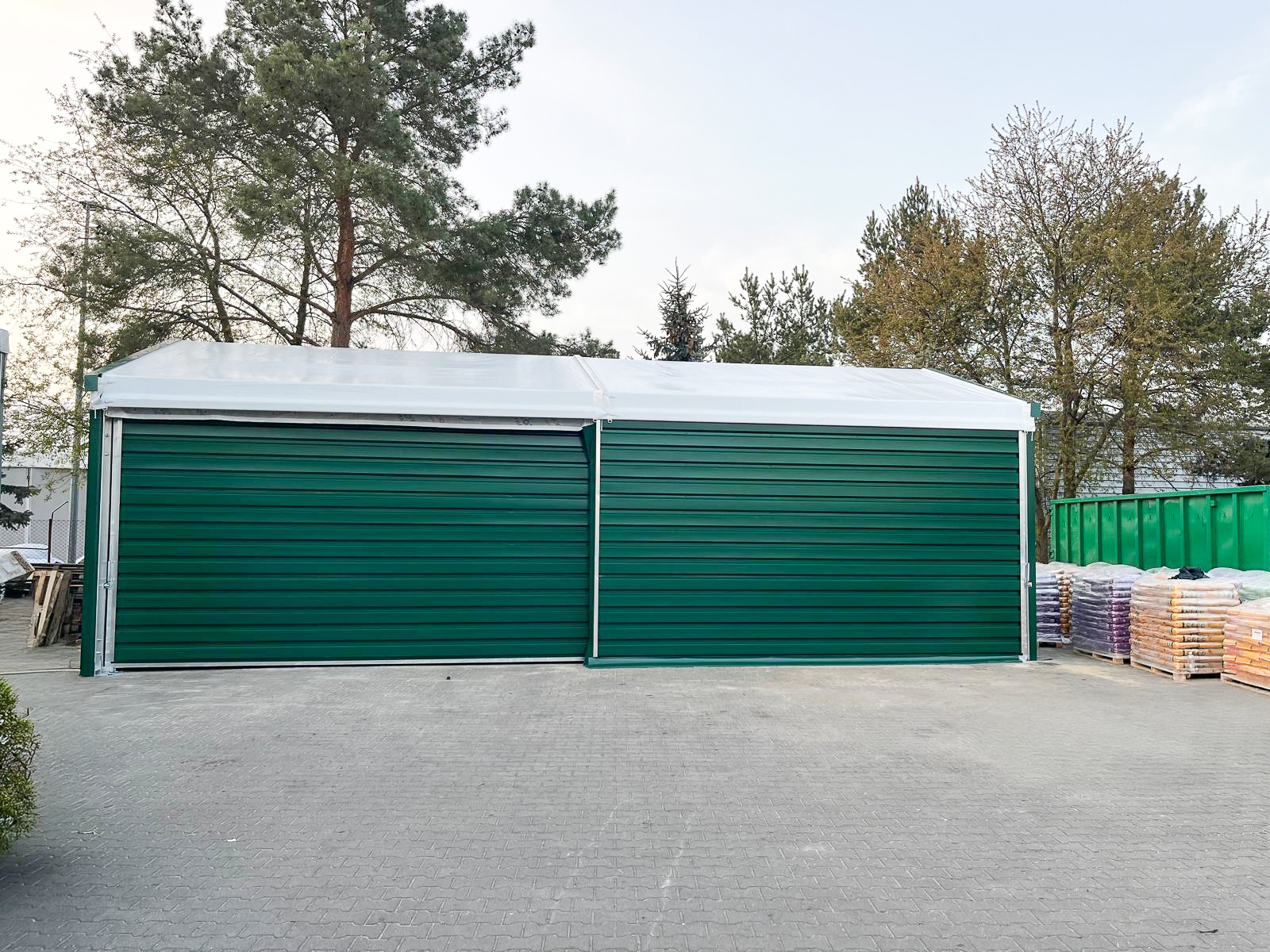

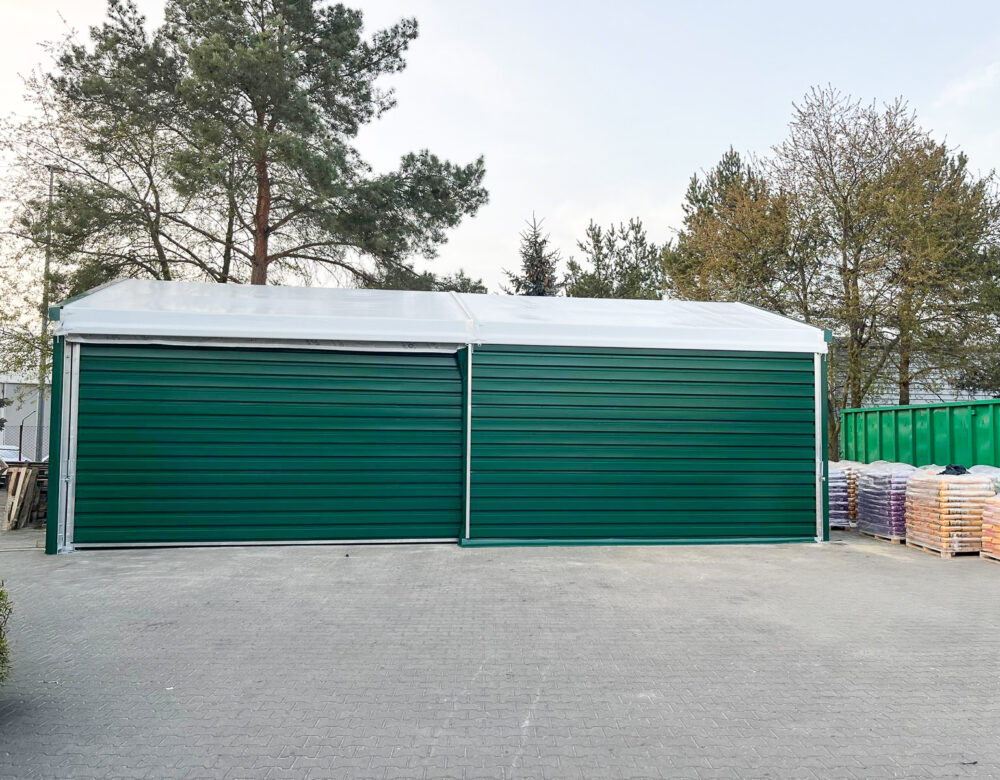

The facility was fitted with two single-leaf sliding doors measuring 5.6 × 3.2 m, located alternately on the same side wall, which presented a significant design challenge. The entire structure was anchored to the ground with pins, with a roof slope angle of 18 degrees. The hall has been adapted to the snow and wind conditions specified for zone 0.9/22.
Wymiary:
The biggest challenge on this project was to design two wide sliding doors on one side wall for such a narrow facility width. This required particular attention at the structural design stage to maintain the stability and reliability of the entire hall. An additional consideration was to ensure adequate protection from condensation in the low-rise facility, which was effectively solved by using an anti-condensation soffit.
The client expected a comprehensive solution that included:
Construction with solid covering
Top quality materials
Weather resistance
Compliance with applicable standards
